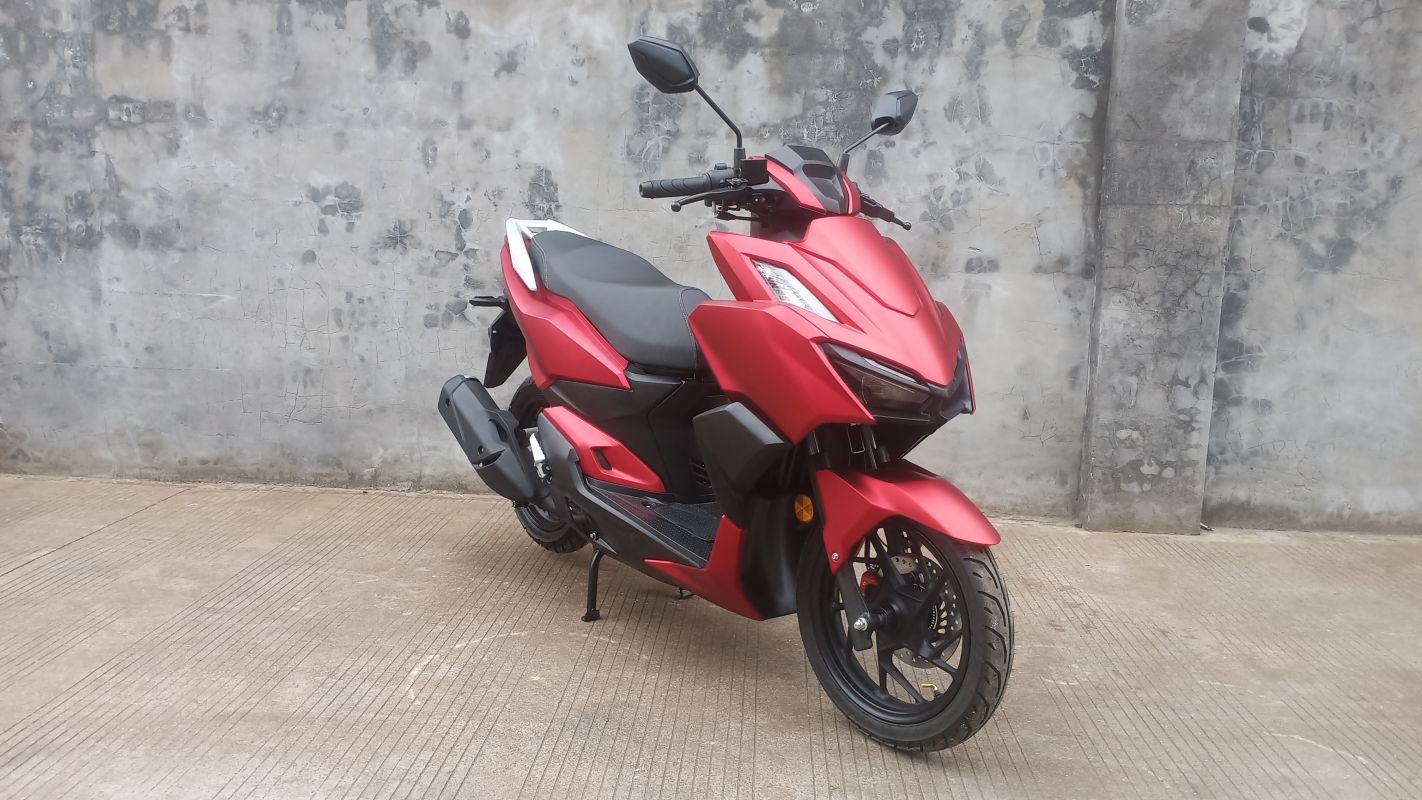

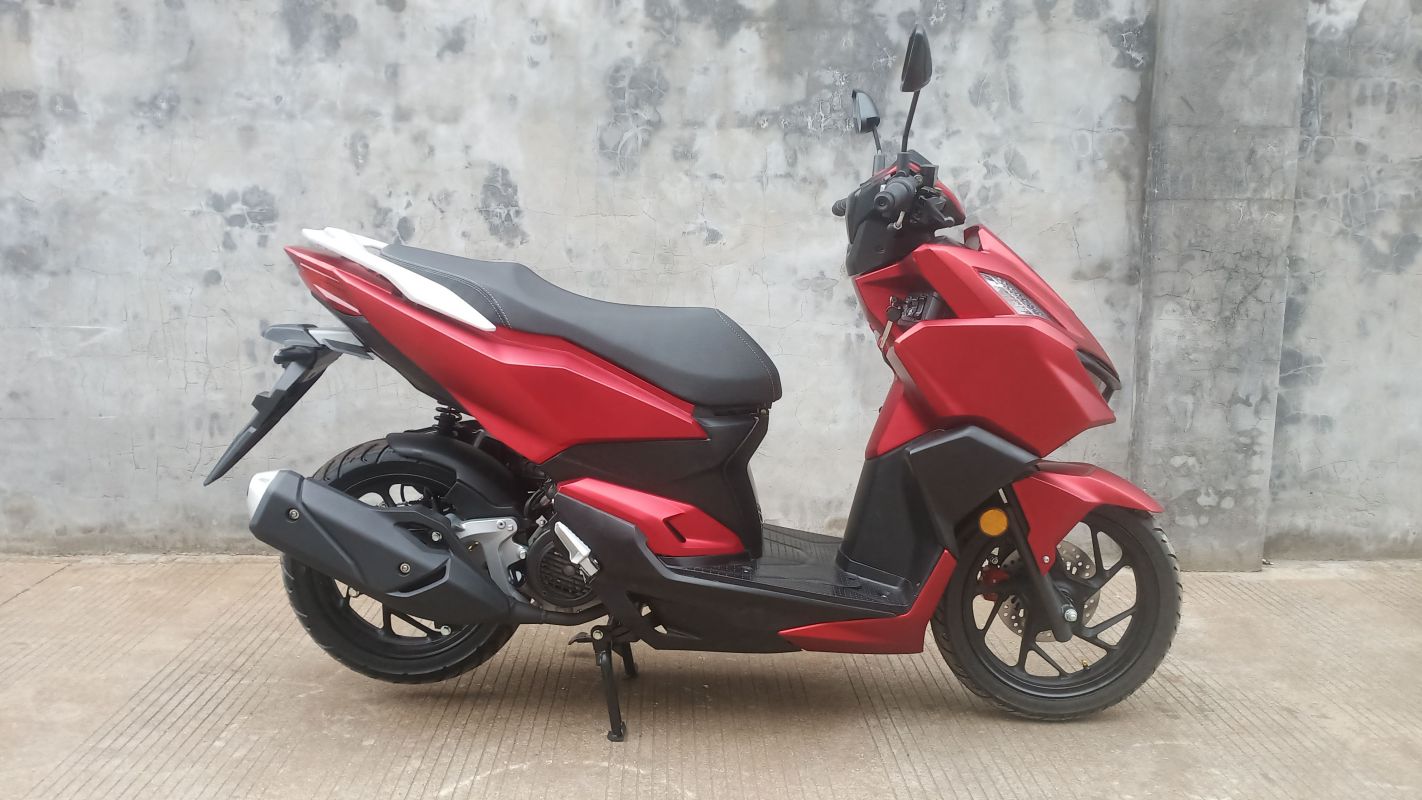

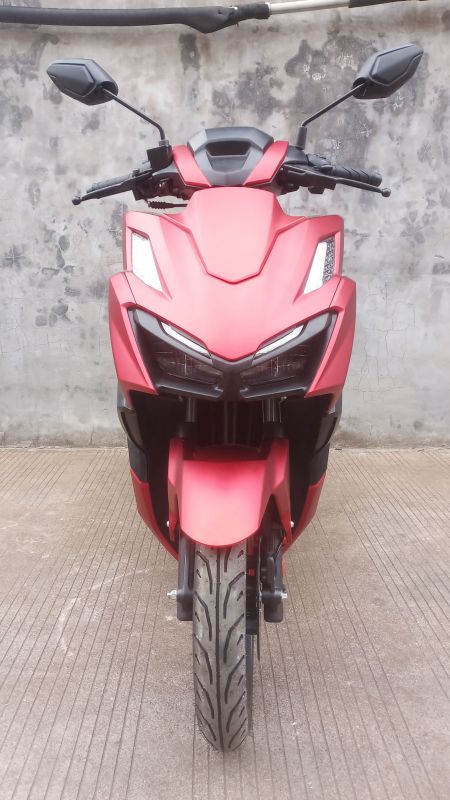

KALA
|
161 /170 |
|
Single Cylinder、forced air cooling、 four stroke、overhead camshafts、horizontal |
| Power System | |

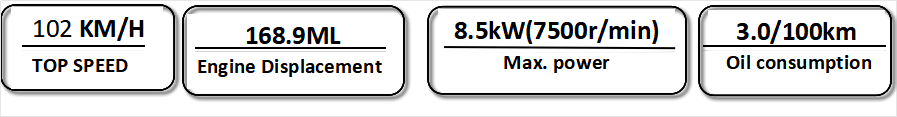

| Maxium Speed | 102 Km/h |
| Cylinder Bore | 61mm |
| Piston Stroke | 57.8mm |
| Compression Ratio | 9.2:1 |
| Ignition Type | ECU |
| MAX Power | 8.5kw (7500r/min) |
| MAX torque | 11N.M (6000R/min) |
| Tank Capacity | 7.2L |
| Oil consumption |
3.6L/100km（carburetor） 3.0L/100km (EFI) |
| DIMEMSION | |
| L*W*H | 1965×700×1010mm |
| Wheelbase | 1345mm |
| Min.Ground Clearance | 150mm |
| Seat Height | 780mm |
| Net Weight | 106kg |
| Framework | |
| Front Shock Absorber | straight cylinder hydraulic L:420 |
| Rear Shock Absorber | Single shock absorber bolded springL: 325 |
| Front/Rear Tire Spec | Vacuum tire front： 90/90-14 rear：100/80-14 |
| Braking Mode | front disk rear drum CBS |
| Rim | Alu. alloyfront14×MT2.15 rear14×MT2.50 |
| Frame material | High quality carbon steel |
| Battery | 12V-8.6A |
GY6/125CC /150CC configuration available
EFI / CDI system optional
