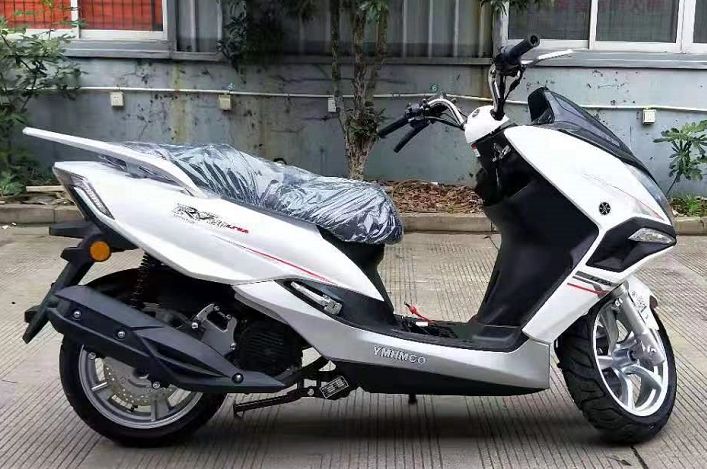

THUNDER3.0
|
GY6 /150 |
|
Single Cylinder、 four stroke、forced air cooling、horizontal |
| Power System | |

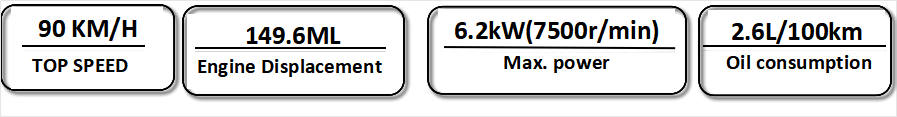

| Maxium Speed | 90 Km/h |
| Cylinder Bore | 57.4mm |
| Piston Stroke | 57.8mm |
| Compression Ratio | 9.2:1 |
| Ignition Type | ECU |
| MAX Power | 6.2kw (7500r/min) |
| MAX torque | 8.5N.M (6000R/min) |
| Tank Capacity | 6.2L |
| Oil consumption |
3.0L/100km（carburetor） 2.6L/100km (EFI) |
| DIMEMSION | |
| L*W*H | 2030×735×1100mm |
| Wheelbase | 1425mm |
| Min.Ground Clearance | 155mm |
| Seat Height | 760mm |
| Net Weight | 122kg |
| Framework | |
| Front Shock Absorber | straight cylinder hydraulic L:445 |
| Rear Shock Absorber | double shock absorber bolded spring L:335 |
| Front/Rear Tire Spec | Vacuum tire front： 130/60-13 rear：130/60-13 |
| Braking Mode | frontrearDiskCBS |
| Rim | Alu. alloyfront13×MT3.00 rear13×MT3.50 |
| Frame material | High quality carbon steel |
| Battery | 12V-7A |
GY6/125CC K29/180 configuration available
EFI / CDI system optional
