N-MAX
|
KS150 |
|
Single Cylinder、 four stroke、forced air cooling、horizontal、water cooling、lower mounted |
| Power System | |

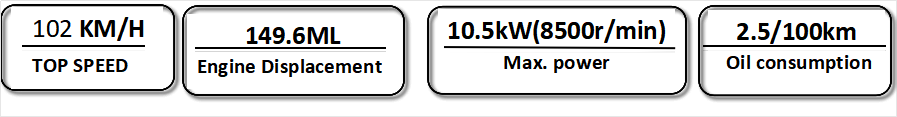

| Maxium Speed | 102Km/h |
| Cylinder Bore | 57.3mm |
| Piston Stroke | 58mm |
| Compression Ratio | 10.6:1 |
| Ignition Type | ECU |
| MAX Power | 10.5kw (8500r/min) |
| MAX torque | 14N.M (6500R/min) |
| Tank Capacity | 10.2L |
| Oil consumption |
3.0L/100km（carburetor） 2.5L/100km (EFI) |
| DIMEMSION | |
| L*W*H | 1930×795×1075mm |
| Wheelbase | 1375mm |
| Min.Ground Clearance | 150mm |
| Seat Height | 770mm |
| Net Weight | 122kg |
| Framework | |
| Front Shock Absorber | straight cylinder hydraulic L:420 |
| Rear Shock Absorber | double shock absorber bolded springL: 325 |
| Front/Rear Tire Spec | Vacuum tire front：130/60-13 rear：130/60-13 |
| Braking Mode | frontrearDiskCBS |
| Rim | Alu. alloyfront13×MT3.00 rear13×MT3.50 |
| Frame material | High quality carbon steel |
| Battery | 12V-8.6A |
EFI / CDI system optional
